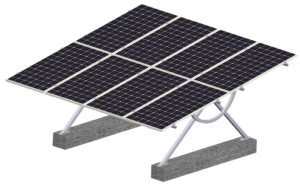

Fixed adjustable ground stand

System Overview:

Fixed adjustable ground bracket is suitable for installation in large commercial, utility power stations, mountainous areas and uneven sites. The product has a solid structure and strong stability. The main components are made of carbon steel and are anti-corrosive with hot-dip galvanizing or galvanized magnesium aluminum. The unique fixed adjustable ground bracket ensures the safety and stability of the bracket structure, effectively reduces engineering installation time and labor costs, reduces installation costs, and has good component compatibility.

System advantages:

Unique bracket design The fixed adjustable bracket can adjust the inclination of the bracket according to the light in different seasons, thereby increasing the overall power generation of the component. Flexible on-site adjustment The industry-leading terrain-adjustable design can be adjusted in all directions, simplifying installation and maximizing photovoltaic power generation.

Technical parameters:
Installation location: ground
Installation foundation: prefabricated piles or cast-in-place piles
Installation angle: 0-60°
Wind load: 60m/s
Snow load: 1.6KN/m2
Height from ground: 500-2500mm
Applicable module type: frame-containing modules
Module arrangement: horizontal or vertical
Design standard: NB/T 10115-2018, GB 50018-2002, GB 55001-2021, GB 50017-2003, GB 50009-2012
Bracket material: Q235B, Q355B or Q420B (hot-dip galvanized or galvanized magnesium aluminum) Fastener material: SUS304 and hot-dip galvanized
