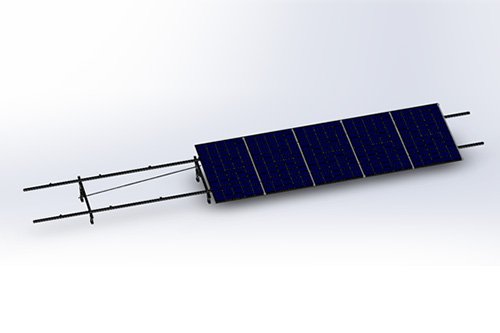

Roof distributed bracket (concrete roof)

System Overview:
Rooftop distributed bracket (concrete roof) is suitable for concrete roof installation. The product has a solid structure and strong stability. The main components are made of carbon steel, and the surface is treated with hot-dip galvanizing or galvanized magnesium aluminum for anti-corrosion. The unique U-shaped cross-section design and professional structural design can effectively reduce the engineering installation time and labor costs, reduce installation costs, and have good component compatibility while ensuring system strength.

System Overview:
Rooftop distributed bracket (concrete roof) is suitable for concrete roof installation. The product has a solid structure and strong stability. The main components are made of carbon steel, and the surface is treated with hot-dip galvanizing or galvanized magnesium aluminum for anti-corrosion. The unique U-shaped cross-section design and professional structural design can effectively reduce the engineering installation time and labor costs, reduce installation costs, and have good component compatibility while ensuring system strength.

Technical parameters:
Installation location: roof
Installation foundation: concrete pier
Installation angle: 0-60°
Wind load: 60m/s
Snow load: 1.6KN/m2
Height from ground: 500-2500mm
Applicable component type: frame component
Component arrangement: horizontal or vertical
Design standard: NB/T 10115-2018, GB 50018-2002, GB 55001-2021, GB 50017-2003, GB 50009-2012
Bracket material: Q235B, Q355B or Q420B (hot-dip galvanized or galvanized magnesium aluminum) Fastener material: SUS304 and hot-dip galvanized
